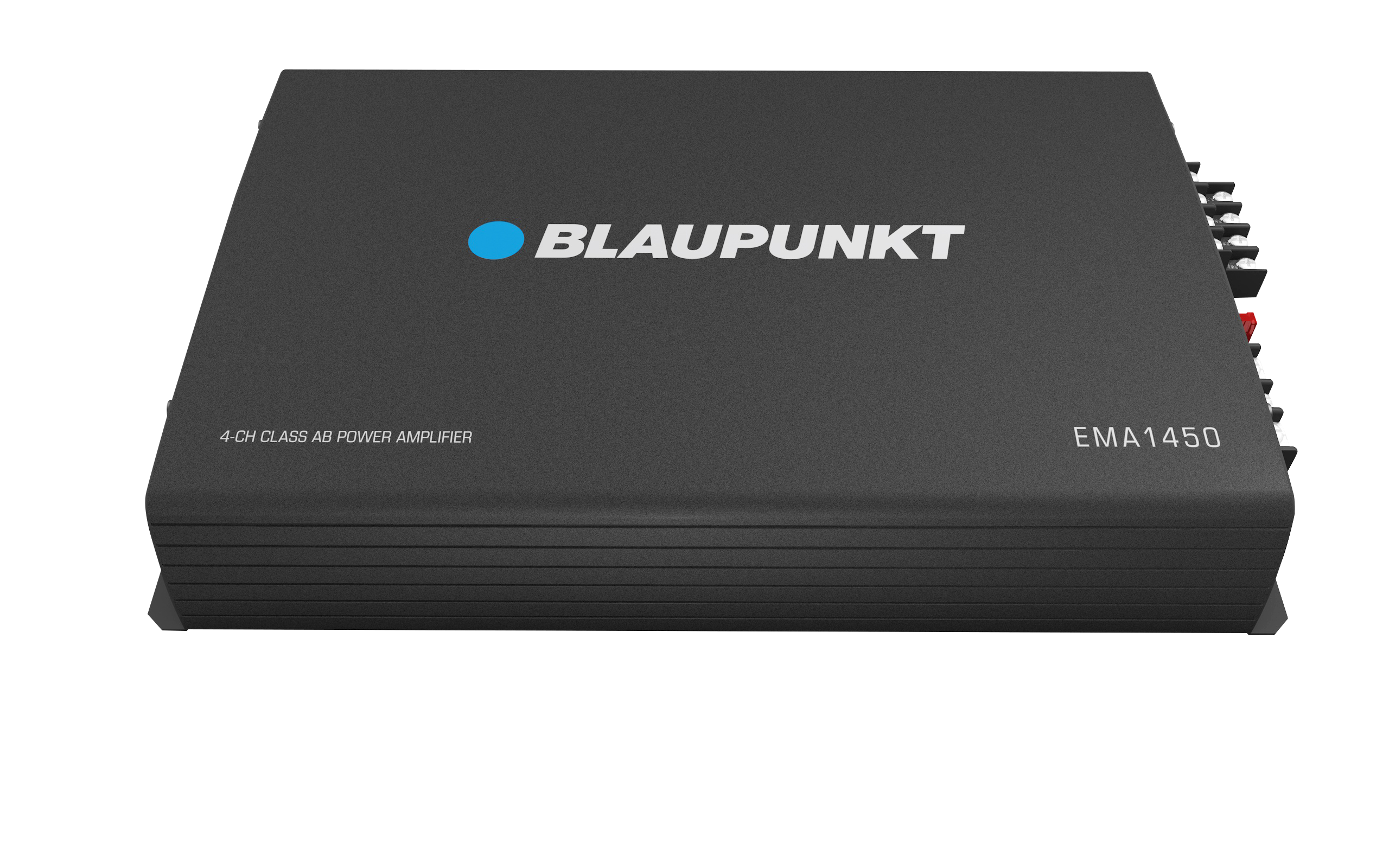

EMA 1450
POWER AMPLIFIER
4-Channel Power Amplifier
SPECIFICATION
Power
•Voltage Supply : 11-15V DC
•Idling Current : 0.5A
•Fuse : 40A x 1
•Consumption @ 2Ω, 14.4 VDC : 40A (Max Musical Power)
Amplifier
•Amplifier Class : CLASS AB
•Channel : 4
•PCB Layer : 1
•Max Output Power @ 4 ohms : 500W
•RMS Power 4 ohms : 50W x 4
•RMS Power 2 ohms : 75W x 4
•RMS Power 4 ohms Bridge : 125W x 2
•Signal-To-Noise Ratio : >96dB
•Frequency Response : 20Hz - 22kHz
•Gain Adjust : 300mV - 6V
•Bass Boost Frequency : 45Hz
•Bass Boost Level : 0-6-12dB
•Total Harmonic Distortion : <0.1%
•Crossover Frequency : 50Hz - 200Hz (L); 80Hz – 3KHz (H)
•RCA Input : 4 Channel
•RCA Output : 2 Channel
•Dimension (W x H x D) : 300 x 210 x 52mm
•Net Weight : 1.77kg
