Audio
DSP Resolution : 24Bit
DSP Output Power RMS @ 4Ω
(≤1% THD +N) : 6 x 35W
DSP Output Power RMS @ 2Ω
(≤1% THD +N) : 6 x 50W
Active Subwoofer RMS Power : 300W
Active Subwoofer Output Power RMS @ 2Ω
(≤1% THD +N) : 150W
Distortion (THD) : <0.005%
Operating Voltage : 10 -14.4V
Sampling Rate : 48KHz/24Bit
Signal Converter A/D : AKM7735
Signal Converter D/A : Cirrus Logic CS4344

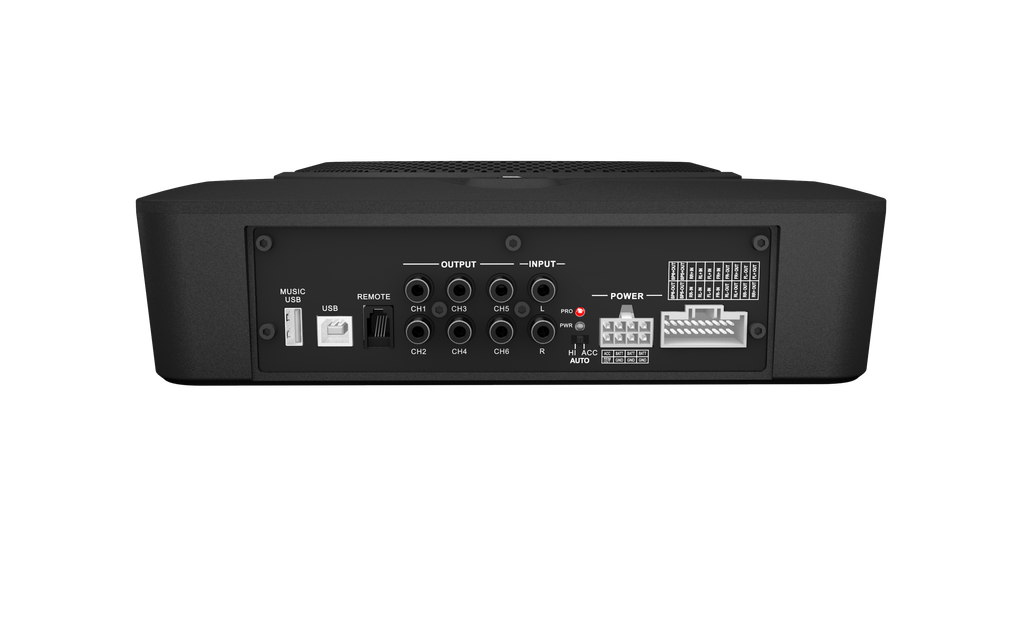

Input
2x RCA/ Aux-in
4 High Level Speaker Input
1x Remote-in
1x USB
RCA/ Cinch Sensitivity : 300mV
High Level Input Sensitivity : 2.5V
Impedance High Level : 240Ω
S/N Ratio Analog-in : ≥100dB
Output
6 x RCA
6 High Level Speaker Output
1x Remote-out
Voltage RCA/ Cinch : 4V RMS
Feature
Class AB Amplifier
31-Band Equalizer/Phase & Time Alignment Setting
PC Tuner Software & Mobile Application
Built-in BT
Max. Output Power : 400W
Frequency Response : 20Hz-20kHz
Dimension (LxWxH) : 347 x 262 x 73mm
Weight : 4.5 kg
Accessories
Remote Controller : 3.0m Wired Remote
4x Screws (Parker-Type) : 4x20mm
8x Screws (M-Type) : 4x5mm
4x Mounting Bracket A : 40x19mm
1x Power Cable
1x High Level Input Cable
1x USB Cable (1.5m)
