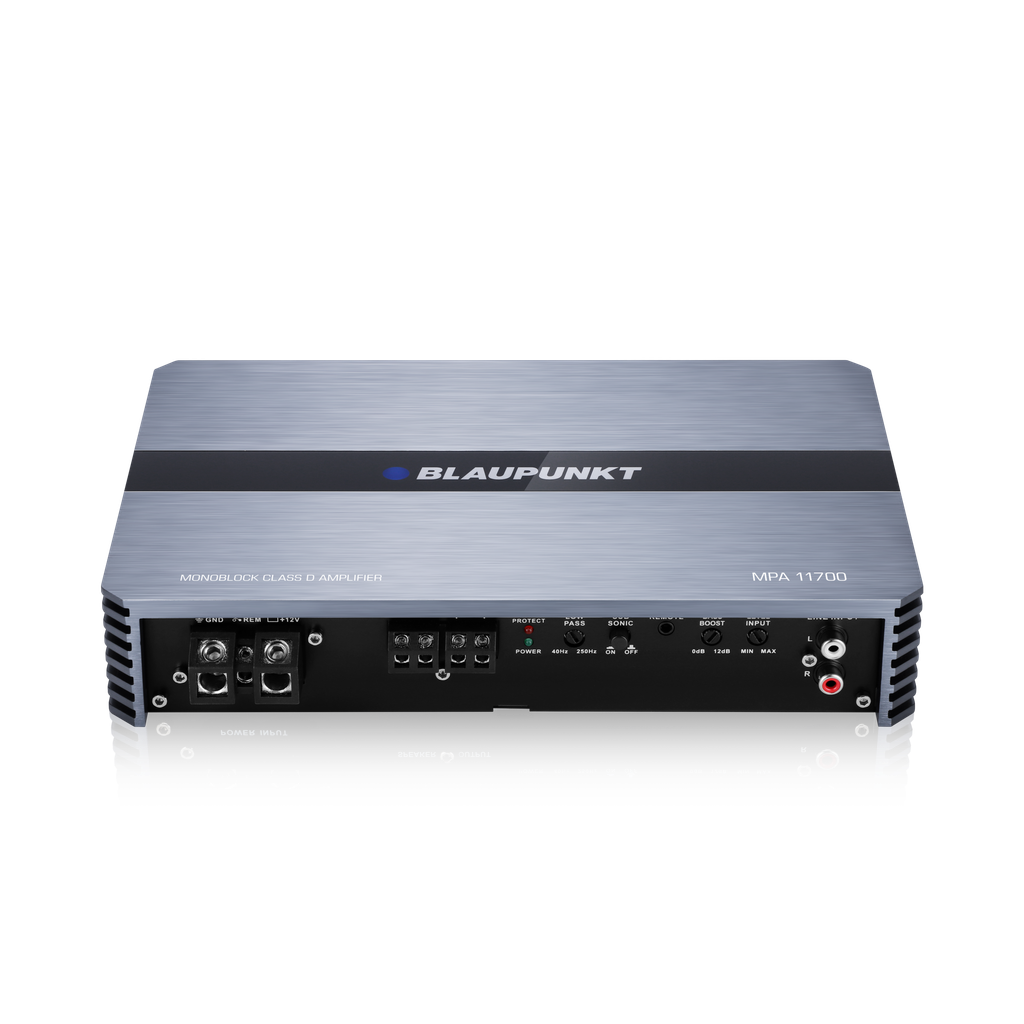

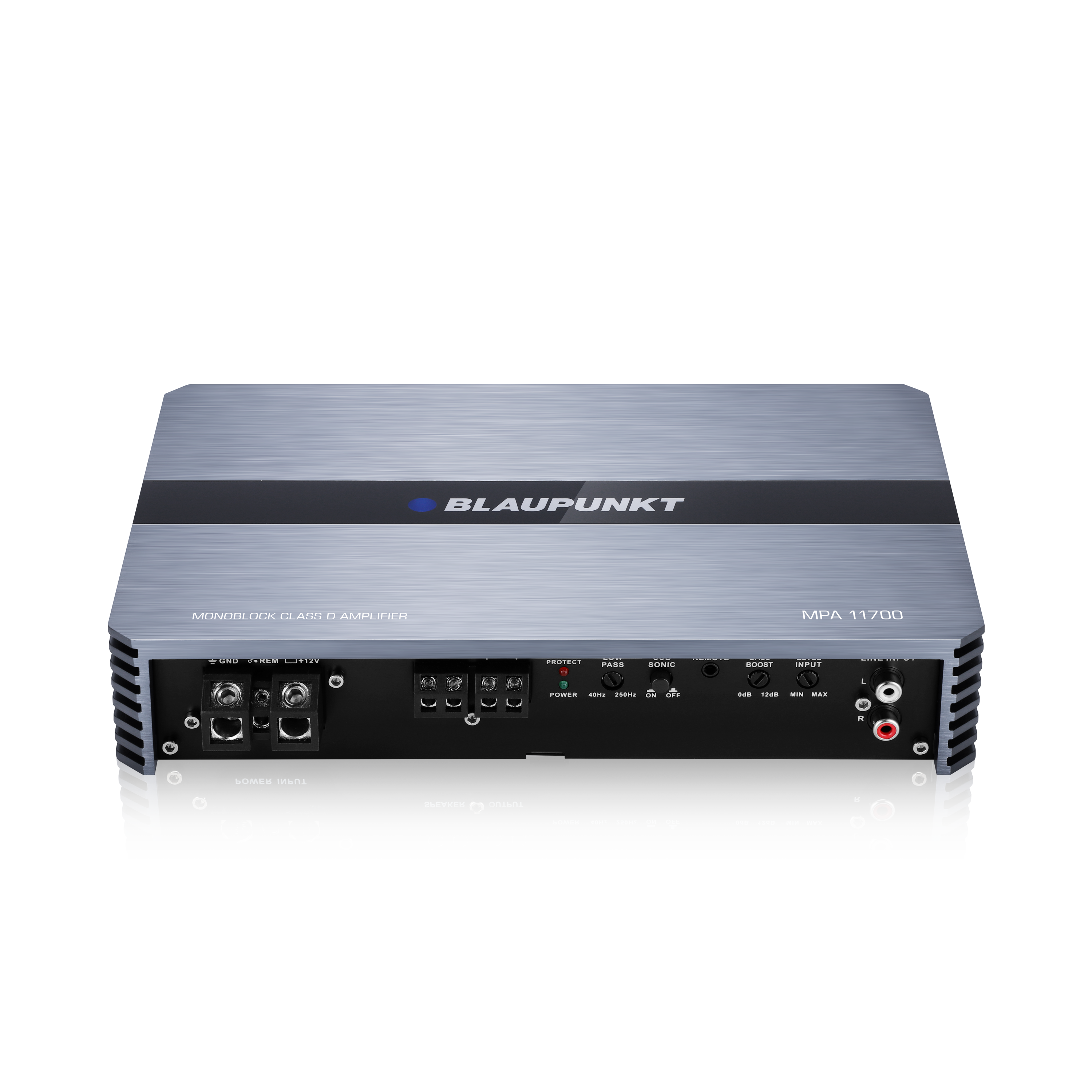

MPA 11700
The Blaupunkt MPA 11700 from the Velocity Power Series is a high-performance 1-channel Class D amplifier designed to deliver immense power for your subwoofer. With a formidable 1400W max output and efficient Class D technology, this amplifier ensures deep, dynamic, and precise bass reproduction, taking your in-car audio experience to the next level.
|
Specification
Power
Voltage Supply: 9V-16V
Idling Current: 0.95A
Fuse: 50A x 3
Amplifier
Amplifier Class: Class D
Channel: 1
PCB Layer: 4
Max. Output Power: 1400W x 1
RMS Power (4 ohms): 900W x 1
RMS Power (2 ohms): 1200W x 1
Signal-to-Noise Ratio: >90dB
Frequency Response: 10Hz - 250Hz
Gain Adjust: 0.3-7V
Total Harmonic Distortion: <1%
RCA Input: 2 Channel
Speaker-in Sensitivity: 200mV - 6V
Speaker-in Impedance: 20kohms
Load Impedance: 1 Ch - (1, 2, 4ohms)
Dimension (LxWxH): 226x175x49.2mm
Weight: 2.27kg
