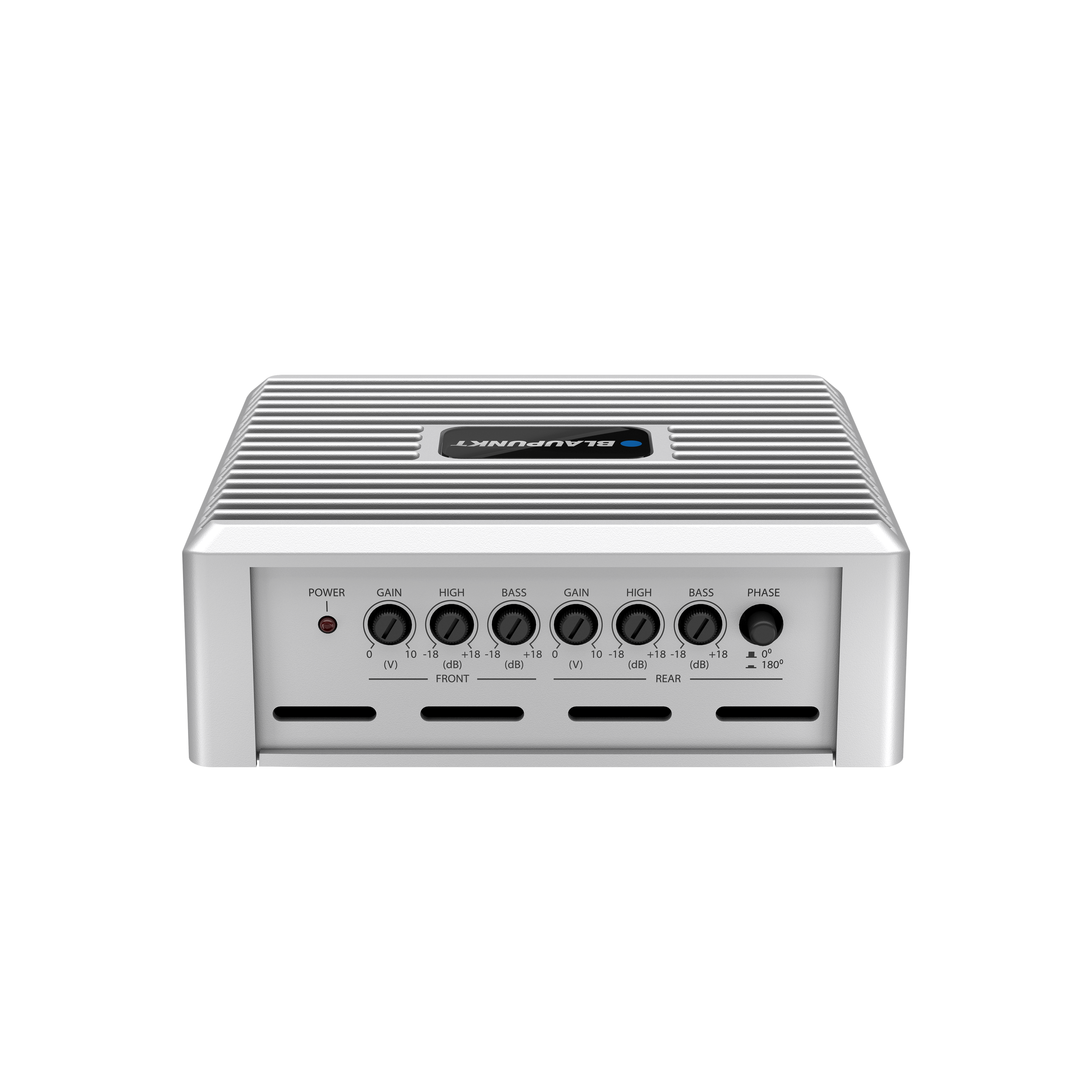

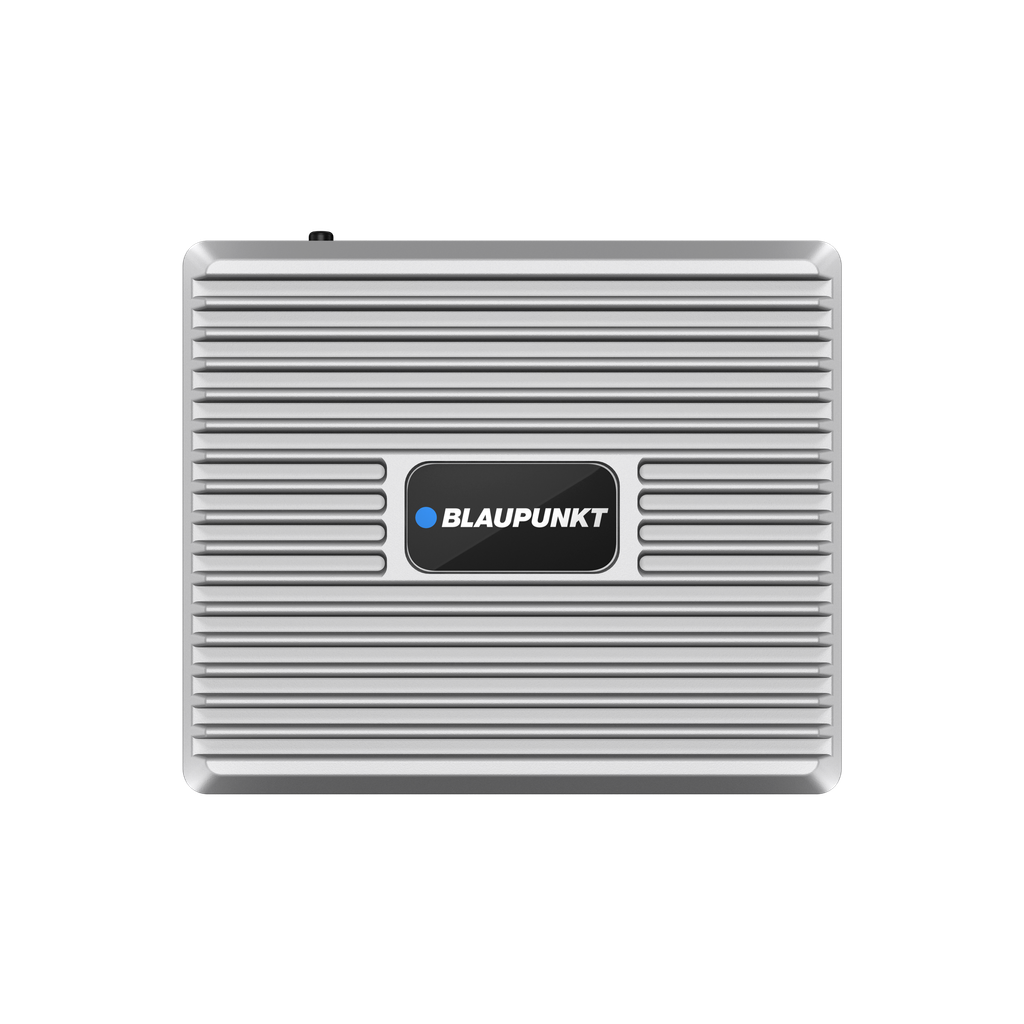

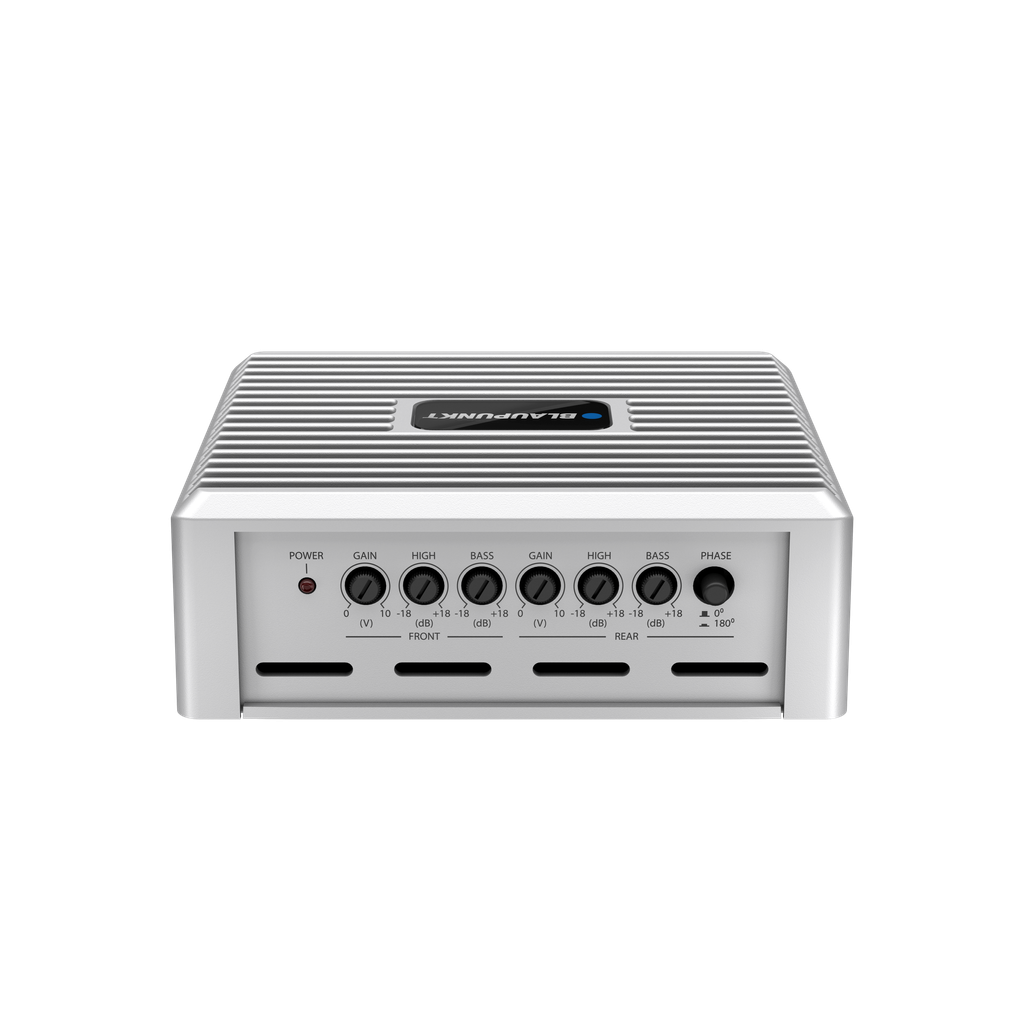

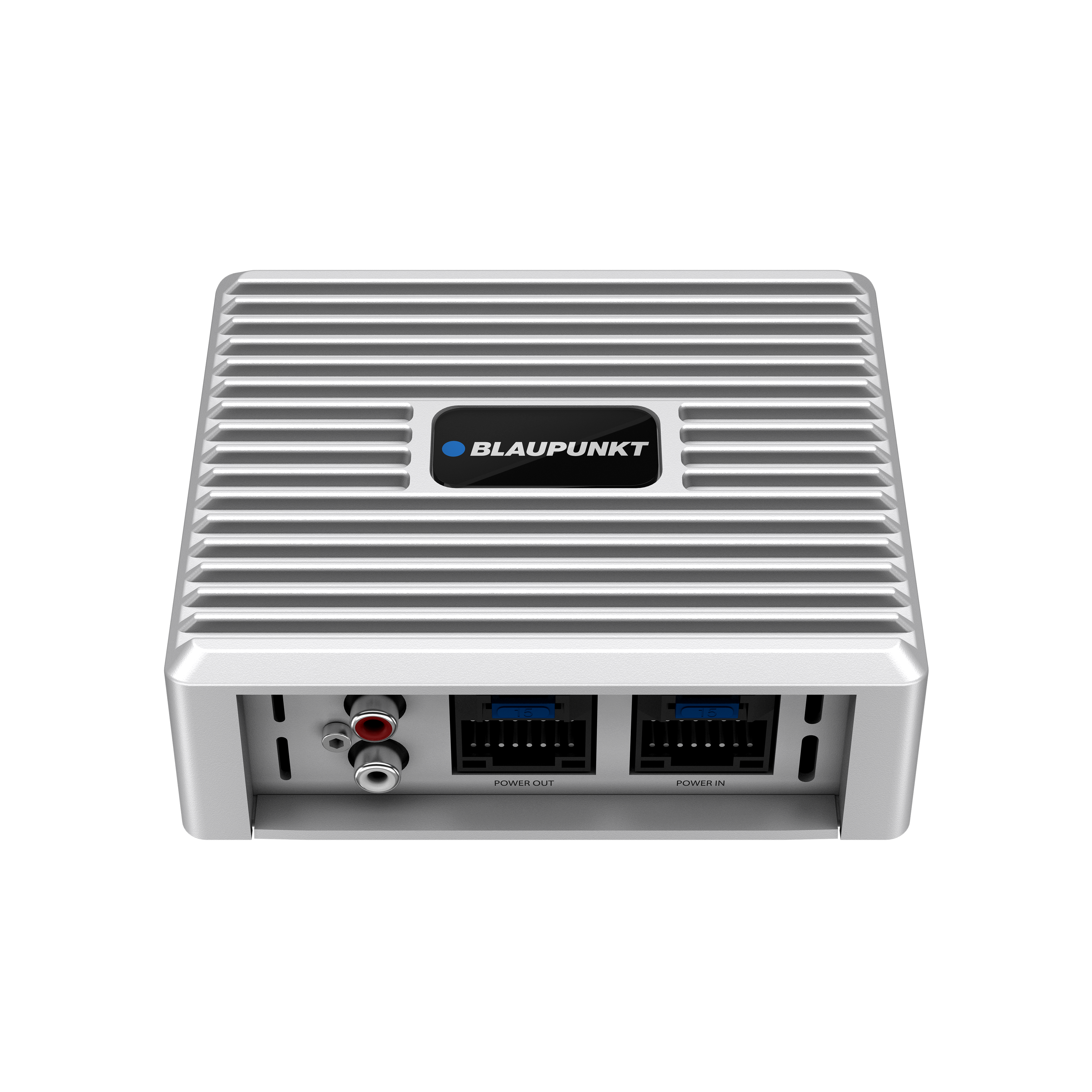

EMA 14022
The Blaupunkt EMA 14022 is a compact 4-channel Class AB power amplifier designed to significantly boost your in-car audio system's performance, especially for setups featuring Android players. Delivering robust power output and equipped with essential features for sound optimization, this amplifier ensures clearer, more dynamic sound reproduction from your speakers.
|
Specification
Power
Voltage Supply: 10V - 14.4V
Idling Current: 0.2A
Fuse: 15A x 2
Consumption @ 2Ω, 14.4 VDC: 15A
Amplifier
Amplifier Class: CLASS AB
Channel: 4PCB Layer: 2
Max Output Power @ 4 ohms: 288W (72W x 4)
RMS Power 4Ω: 22W x 4
RMS Power 2Ω: 38W x 4
Signal-To-Noise Ratio: >60dB
Frequency Response: 20Hz - 22kHz (+/-1dB)
Total Harmonic Distortion: <0.1%
RCA Output: 2 Channel
Gain Adjust: 0-10V
Speaker-in Sensitivity: 2V
Speaker-in Impedance: 10k ohms
Load Impedance: 4 CH - 2/4 ohms
Dimension (W x H x D): 131.5 x 111 x 43mm
Net Weight: 0.6kg
