Ocsit Lite GPS/GSM Tracker l NaviTrack

RM 0.00

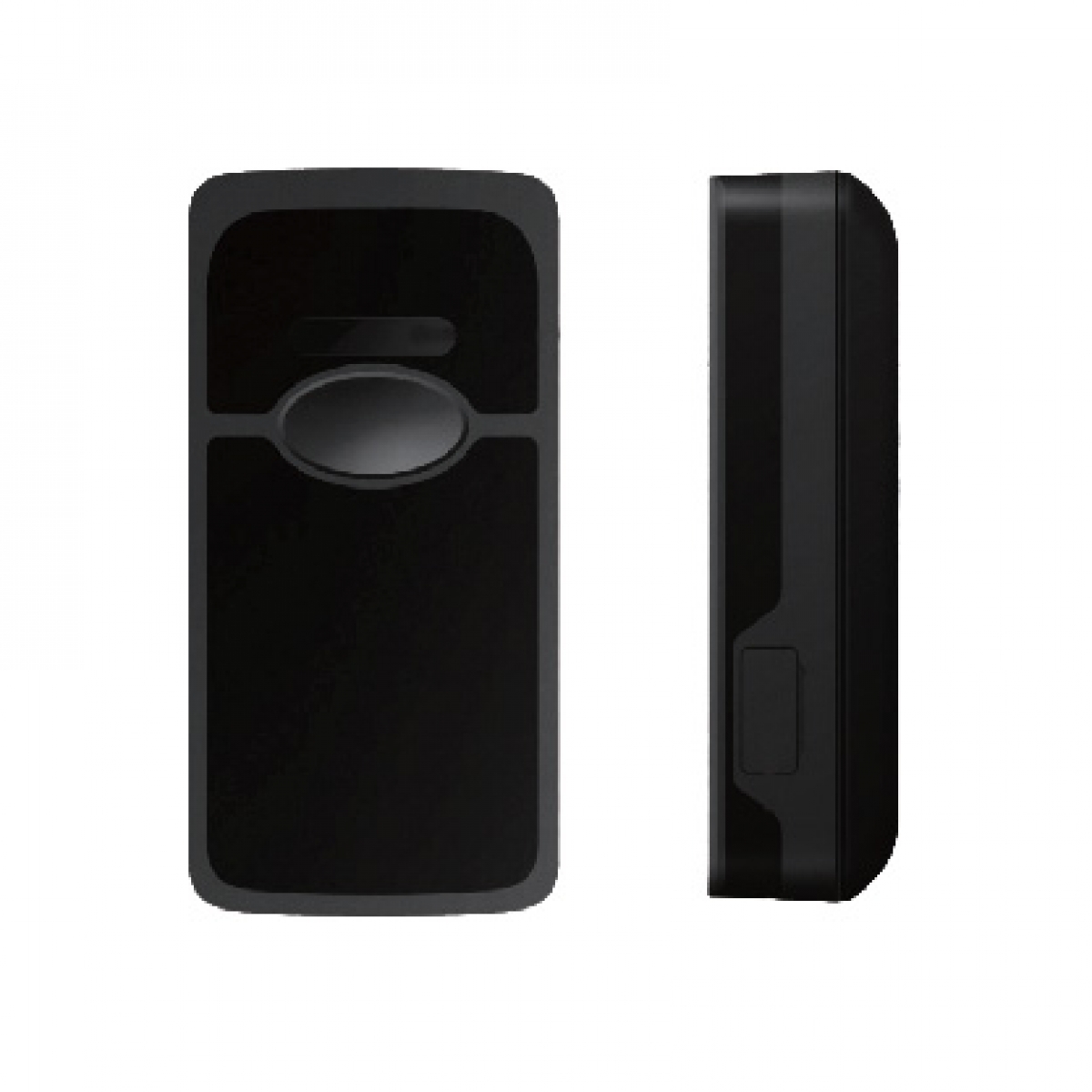

NaviTrack Vehicle Tracking System Ocsit Lite GPS/GSM Tracker

Being the smallest tracker around, it is compact, useful and nothing and no one will get lost again. You can access via your smartphone or computer.



General Specification


Dimension  (LxWxH)

88 x 37 x 20mm

Weight

58g

Backup Battery

Li-Polymer 1300mAh, 3.7V

Standby Time

Without reporting : 300 - 400hrs


5 minutes reporting : 100 - 170hrs


10 minutes reporting : 150 - 220hrs

External DC Voltage

5VDC

External Battery Voltage

3.5V - 4.2VDC

GPS Specification


GPS Chipset

UBLOX All-in-one GPS Receiver Sensitive, Fast & Accurate

Sensitivity

Cold srart - 147dBm


Reacquisition -160dBm


Tracking-160dBm

Positon

Autonomous :

Accuracy

SBAS : 2.0m

TTFF (Open Sky)

Cold Start 29s


Warm Start


Hot Start

User Interfaces


Mini USB Connector

Include external power and UART

Power Button

For power on & power off. Can be disabled by the air interface protocol

Function Button

For SOS alarm or quick setting of Geofence

Motion Detection Specifications

Motions Direction

3-axis

Acceleration Detection Scale

±8g

GSM Specification


Frequency

Quad-band : 850 / 900 / 1800 / 1900MHz


Compliant to GSM phase 2/2+


- Class 4 (2W@850 / 900MHz)


- Class 1 (1W@1800 / 1900MHz)

GPRS

GPRS multi-slot class 12


GPRS mobile station class B

RMS Phase Error

5 deg

Max Out RF Power

33. OdBm±2dBm

Dynamic Input range

-15 - 102dBm

Receiving Sensitivity

Class II RBER2% (-102dBm)

Stability of Frequency

Greater than 2.5ppm

Max Frequency Error

±0.1ppm

Air Interface Protocol


Transmit Protocol

TCP, UDP, SMS

Scheduled Timing Report

Report Position follows a pre-set fix interval & report interval

Geo-Fence

5 Geofence regions can be defined

Low Battery Alarm

Alarm when backup battery is low

Power On Report

Report when the device is powered on

Power Down Alarm

Report when the device is turned off

SOS/Emergency Alarm

SOS alarm when function key is pressed




For purchase more than 10 units, drop us message here
