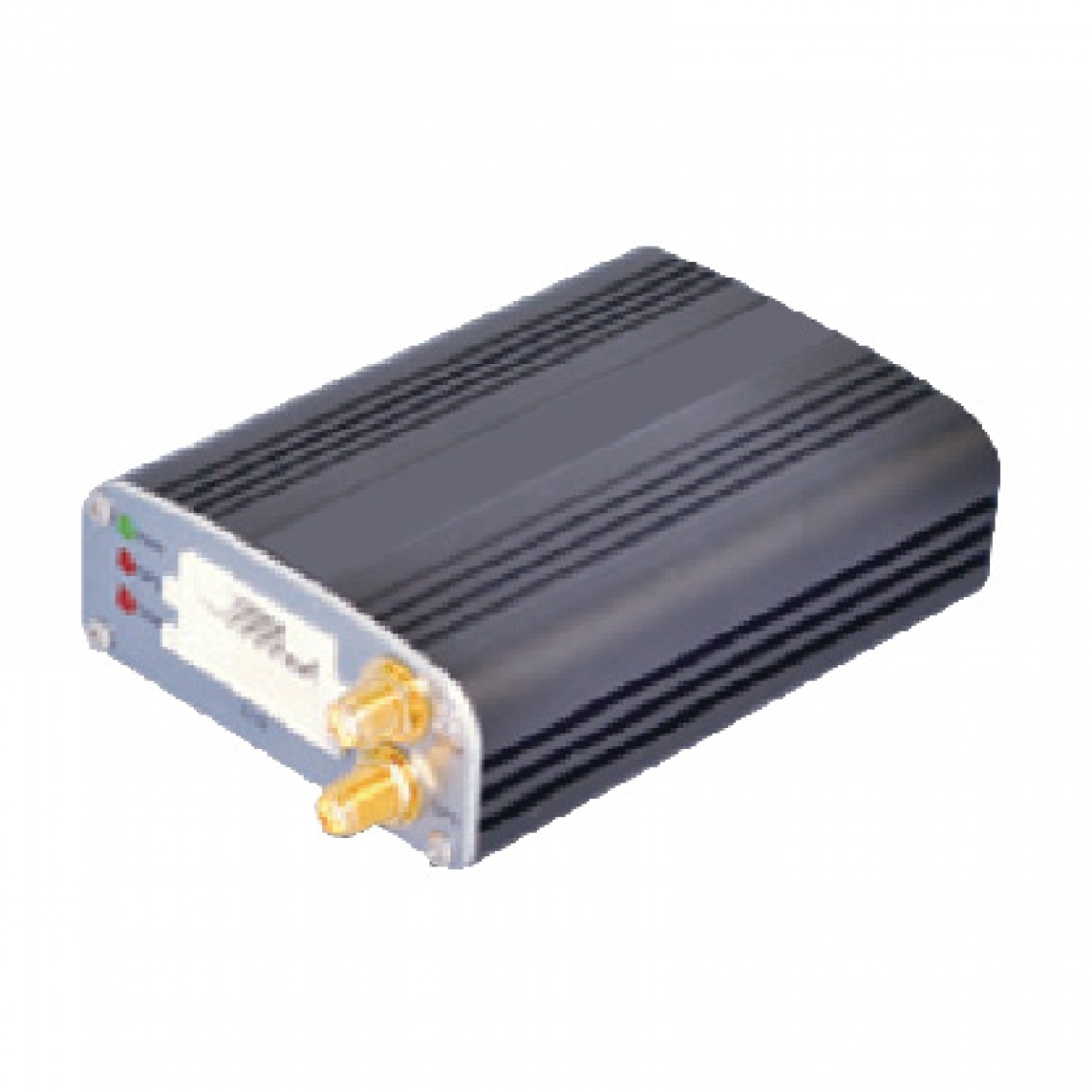

N-AT5 GPS / GPRS Advanced Vehicle Tracker | NaviTrack

RM 0.00


NaviTrack Vehicle Tracking System N-AT5 GPS / GPRS Advanced Vehicle Tracker

Never lose the location of your vehicle if it gets stolen with NaviTrack Vehicle Tracking System. This is an advance vehicle tracker with AES-12 data encryption and can is configured with real time tracking and logging.



Product Features

  • Data communication by SMS / USSD / GPRS / TCP / UDP
  • AES-12 data encryption
  • 1-Wire ® Supported (NAT5i only)
  • GSM jamming detect & report
  • Automotive 3-axis G-sensor rate at ±16g
  • FOTA firmware update via GPRS from FTP server
  • 2 way voice communication & wire-tap
  • Configurable Real Time Tracking & Logging by : Time, Distance, Ignition Status, Vehicle speed changes & Heading changes
  • 64 user defined Geofence in circular, rectangular and polygonal shapes
  • GPS antenna tampered detect & report
  • GPS signal reception timeout detect & report
  • GPS or Vehicle Speed Sensor (VSS) odometer supported
  • Ignition and Engine ON/OFF detect
  • Roaming preference settings
  • Speeding, idle report, vehicle tow alert detect & report
  • User defined report & schedule control for all reports
  • Configurable power management
  • Support Garmin ® FMI


Standard Accessories

  • Power & I/O Cable
  • External GPS & GSM Antenna
  • RS232 Cable


Optional Accessories

  • Rechargeable backup battery (900mAh)
  • AC1 - OBDII Interface kit
  • AC2 - J1939 interface kit
  • Ac3 - J1708 interface kit
  • RFID Reader & Tag
  • RS1 - RS232 Expander
  • 1-Wire® temperature sensor probe (NAT5i)
  • iButton® ID verification reader & tag (NAT5i)


Hardware Specifiation

  • Dimension (L x W x H) 100 x 65 x 26mm
  • GSM Module Quad-band 850 / 900 / 1800 / 1900 MHz
  • GPS Module High sensitive GPS
  • Power Source 8V ~ 40V
  • Power Management 3 modes - normal, sleep, deep sleep
  • Memory Capacity 8MB
  • Dvice 1/O Port Digital input x 4, digital output x 3, analog x 1
  • *1-Wire ® Supported NAT5i Model
  • GSM & GPS Antennas SMA Connector Type
  • Audio Amplifier Built-in
  • Motion Sensor 3-axis G-sensor for motion & impact
  • Real-Time Clock Internal
  • Device Casing Aluminium Alloy
  • Operating Temperature -30°C ~ +80°C






For purchase more than 10 units, drop us message here
