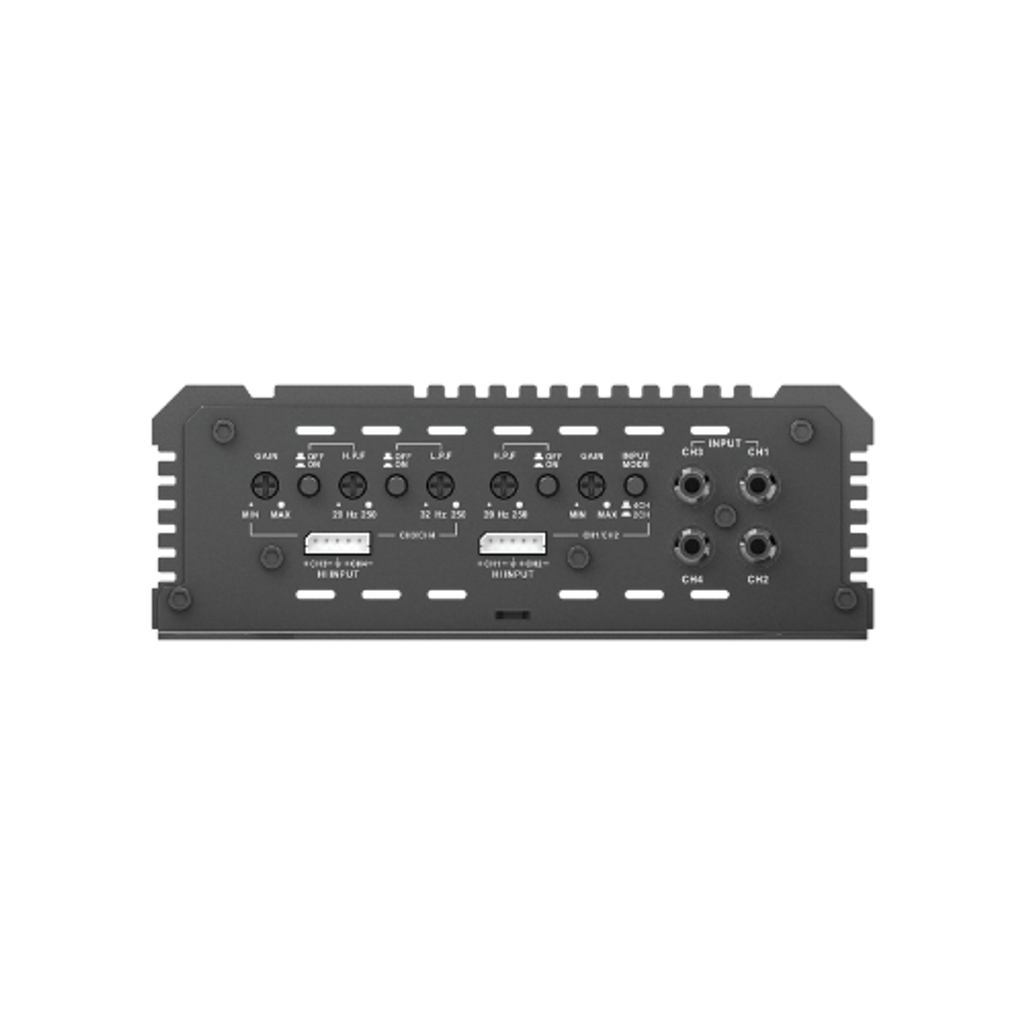

GTA 475 | Blaupunkt 4/3/2 Channel Power Amplifier

RM 0.00


Amplify your car radio's electrical signal for a better coverage with Blaupunkt GTA475 that is solely German-made and high quality in function. Listening to radio will never be same again.




Specification :

•   Amplifier Class : Class AB
•   No of channel : 4/3/2
•   No of PCB layer : 2
•   Max total power : 160W x 2
•   RMS power (4ohms) : 75W x 2
•   RMs power (2ohms) : 120W  x 2
•   Max total power bridged (4ohms) : 240W x 2
•   Frequency response : 10Hz - 50kHz
•   Signal-To-Noise Ratio : =>96dB
•   Voltage supply : 11 - 16V DC
•   idling current : 0.8A
•   Gain adjust : 200mV - 6V
•   Crossover Type : Variable LPF
•   Crossover Frequency (Low Pass Filter) : 32Hz - 250Hz
•   Crossover Frequency (High Pass Filter) : 20Hz - 250Hz
•   Crossover slope : -12dB/oct
•   Hi-Volt input level control : 3V
•   Lo-Volt input level control : 200mV - 6V
•   Total harmonic distortion : <=0.05%
•   RCA input : 4 Channel
•   Speaker input : Yes
•   Fuse : 40A x 2
•   Power / Ground Terminal : Screw - Type
•   Speaker terminal : Screw-Type
•   Net Weight : 2.85Kg
•   Dimension (W x H x D) : 260 x 165 x 58.5mm
