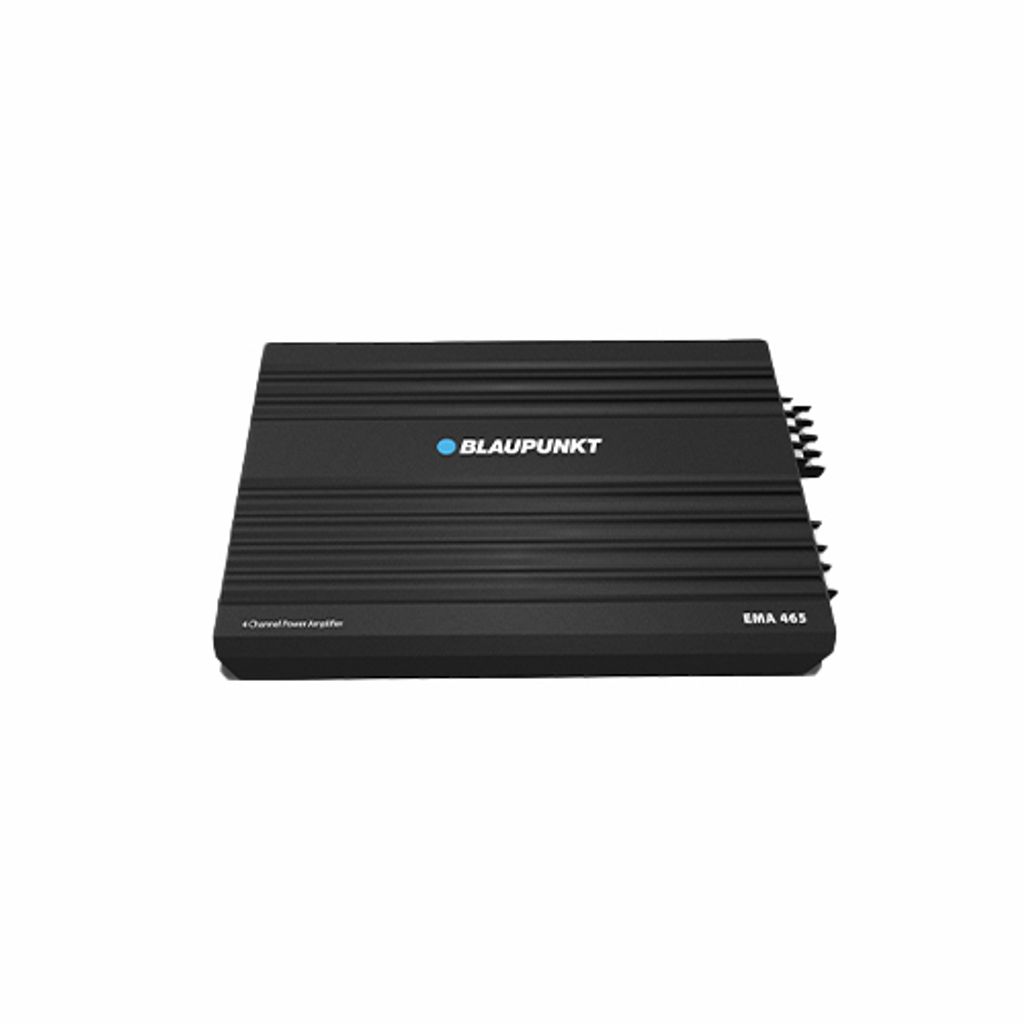

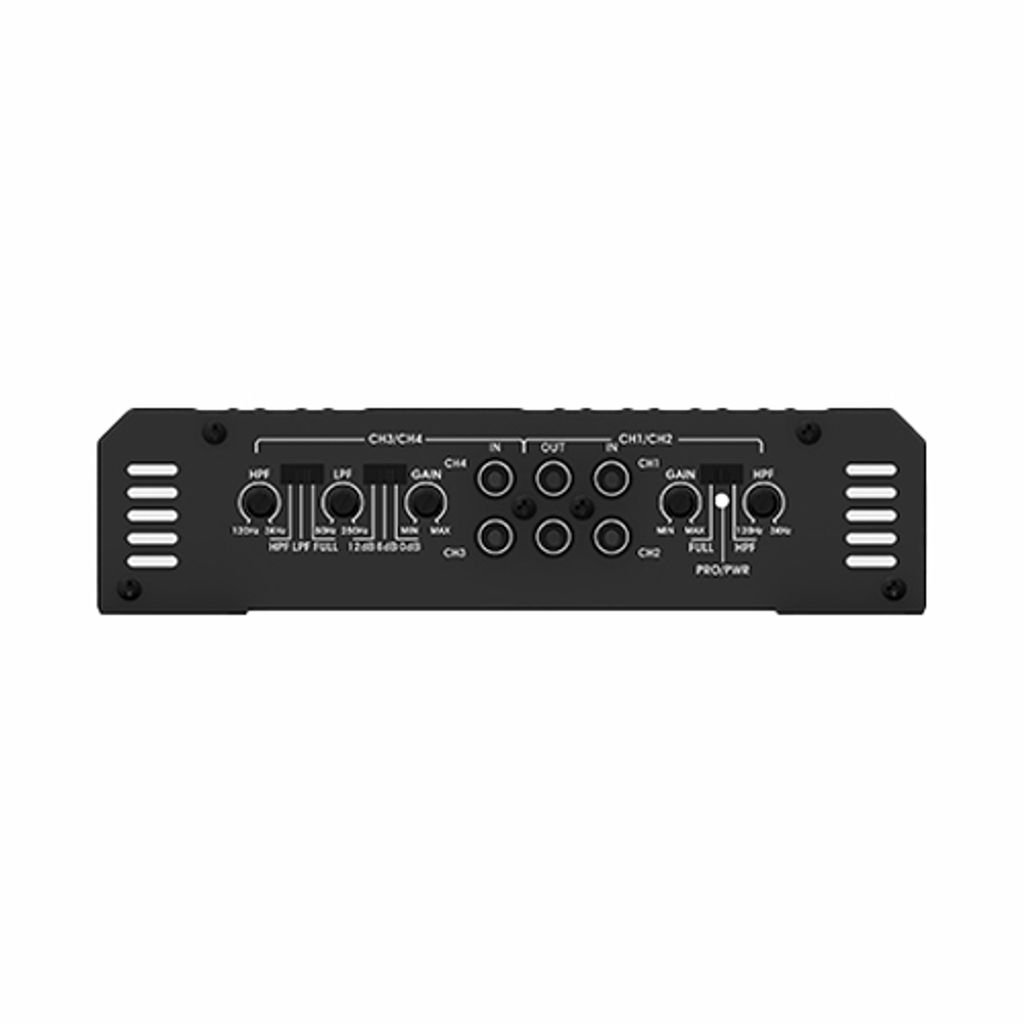

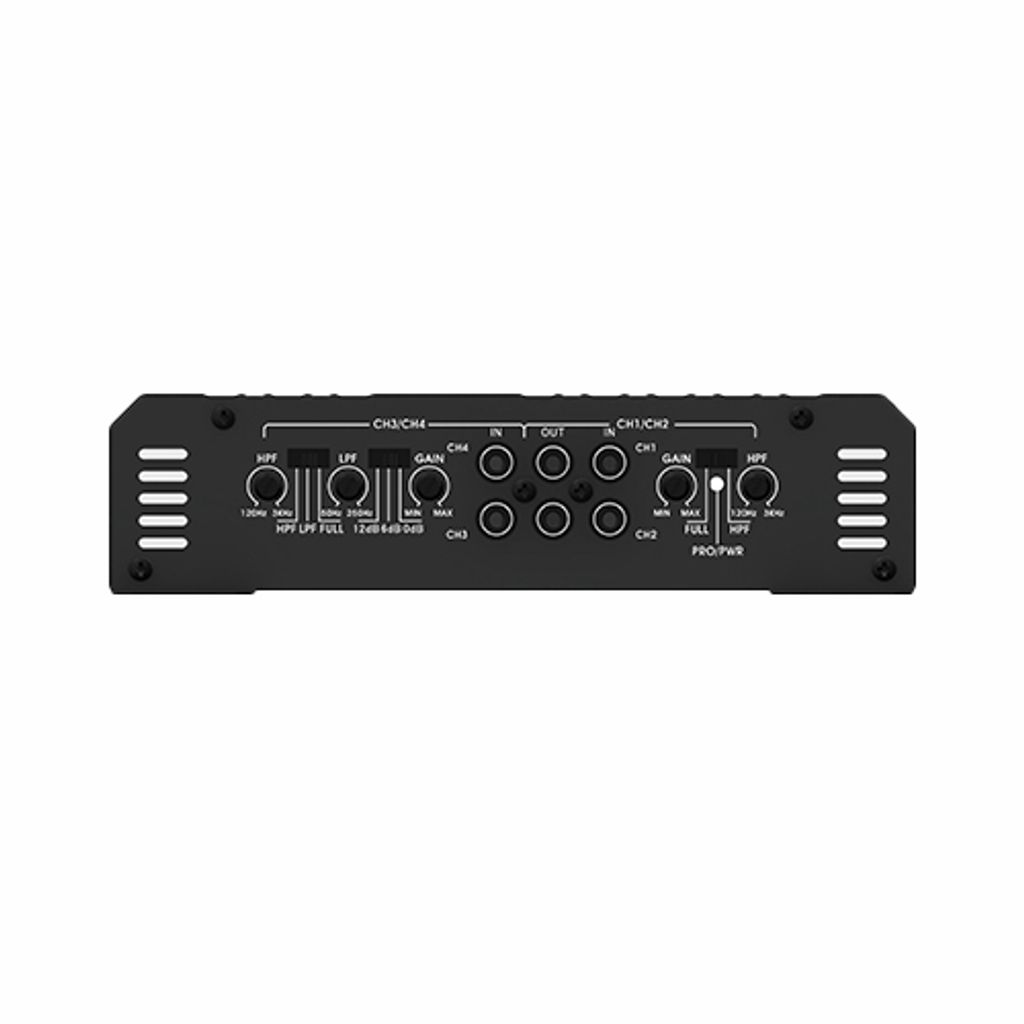

EMA 465 | Blaupunkt 4/2/1 Channel Power Amplifier

RM 0.00


Amplify your car radio's electrical signal for a better coverage with Blaupunkt EMA 465. Listening to radio will never be same again.


Specification:

  • Voltage Supply: 9 - 15V
  • Idling Current: 0.56A
  • Fuse: 25A x 2
  • Consumption at 2ohms, 14.4V D: 22A (Max Musical Power)
  • Amplifier Class: AB
  • Channel: 4/2/1
  • PCB Layer: 1
  • Max Output Power at 4ohms: 120W x 4
  • RMS Power 4ohms: 60W x 4
  • RMS Power 2ohms: 90W x 4
  • RMS Power 4ohms Bridge: 150W x 2
  • Pre-in Sensitivity: 200mV - 6V
  • Signal-To-Noise Ratio: 90dB
  • Frequency Response: 20 - 22kHz
  • Gain Adjust 200mV - 3.5V
  • Bass Boost Frequency: 55Hz
  • Bass Boost Level: 0/6/12dB
  • Total Harmonic Distortion:<0.05%
  • RCA Output: 2-Channel
  • Crossover Frequency: 50Hz - 250Hz (L), 120Hz - 3kHz (H)
  • Dimension (W x H x D): 300 x 200 x 51.5mm
  • Net Weight: 1.75kg
