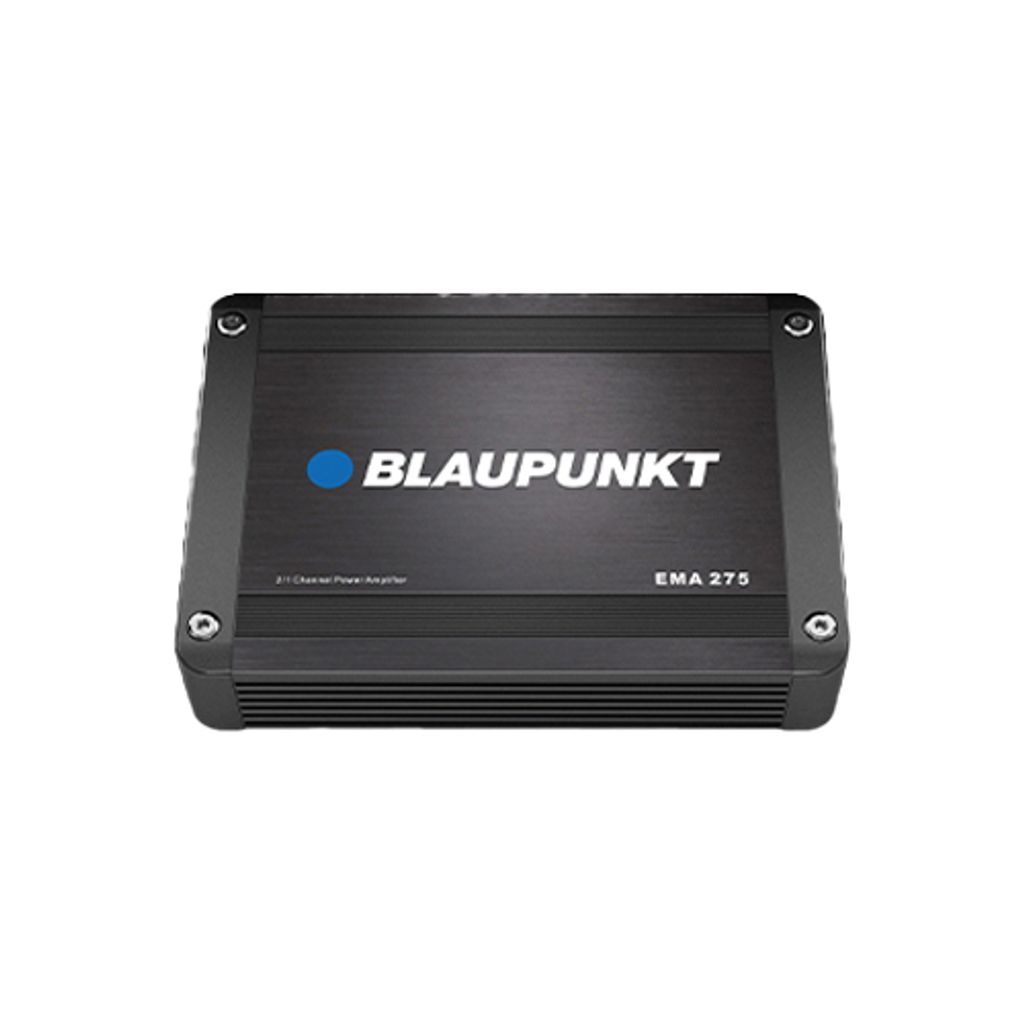

EMA 275 | Blaupunkt 2/1 Channel Power Amplifier

RM 0.00


Amplify your car radio's electrical signal for a better coverage with Blaupunkt EMA 275  that is 100% German-made and high quality in function. Listening to radio will never be same again.




Specification:

•   No of Channel:2/1 Channel
•   Max. output power : 150W x 4
•   RMS Power (4 ohms) : 60W x 4
•   RMS Power (2 ohms) : 90W x 4
•   Max total power bridged (4 ohms) : 180W x 2
•   Frequency response : 10Hz - 45kHz
•   Voltage Supply : 11 - 16V DC
•   Idling current : 0.5A
•   Gain Adjust : 160mV - 6V
•   Bass boost frequency : 50Hz
•   Bass boost level : 0/6/12dB
•   Signal / Noise Ratio (dB) : =>96dB
•   Crossover Type : Variable LPF/HPF
•   Crossover Frequency (Lo Pass Filter) : 50Hz - 400 Hz
•   Crossover Frequency (Hi Pass Filter) : 60Hz - 1.2kHz
•   Crossover slope : -12dB/oct
•   Lo-Voltage Input Level Control : 150mV - 5.5V
•   Total harmonic distortion : <=0.05%
•   RCA input : 2 channel
•   Fuse : 30A  x 1
•   Power/Ground terminal : Screw-Type
•   Weight : 1.7 kilogram
•   Dimension (W x H x D) : 265 x 190 x 53mm
•   Bass Boost Frequency:55Hz




For purchase more than 10 units, drop us message here
